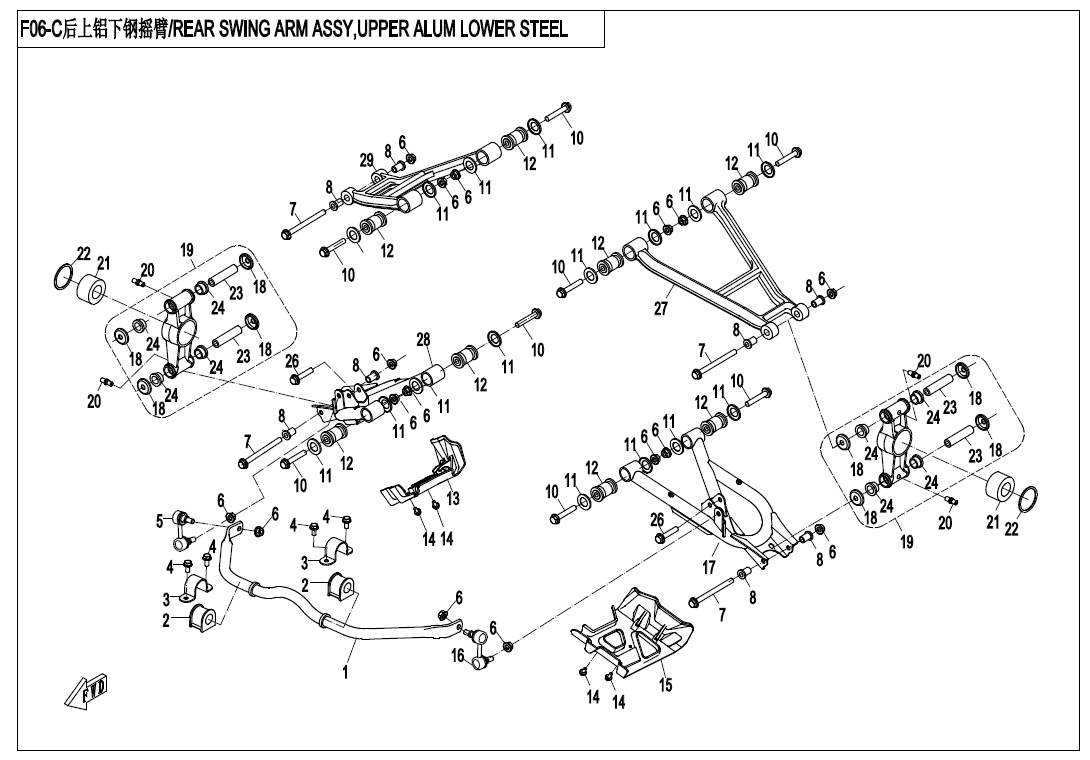

REAR SWING ARM ASSY,UPPER ALUMI LOWER STEEL - F06-C

REAR SWING ARM ASSY,UPPER ALUMI LOWER STEEL - F06-C

No.

01
P/N (SKU): 9010-060500
Part Name: SWAY BAR
Effective: 2021-02-26
Price: 62,00 € : 62,00 €
-+
02
P/N (SKU): 9010-060003
Part Name: RUBBER SUPPORT SEAT
Effective: 2021-02-26
Alternative parts: 9GQ0-060003
Price: 6,00 € : 6,00 €
03
P/N (SKU): 9010-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts: 9GQ0-060601
Price: 4,00 € : 4,00 €
-+
04
P/N (SKU): 30006-080012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M8×12
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 28,00 € : 28,00 €
06
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30006-102140810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Remarks: ALUMI
Specification: M10×1.25×140
Price: 3,00 € : 3,00 €
-+
07
P/N (SKU): 30006-102100810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Remarks: STEEL
Specification: M10x1.25x100
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 401B-060001
Part Name: REAR SWING ARM SLEEVE
Effective: 2021-02-26
Price: 8,50 € : 8,50 €
-+
10
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×70
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
12
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 9010-040022-10000
Part Name: REAR SUSPENSION FENDER, RH
Effective: 2021-02-26
Specification: INTERFERENCE IN PARKING CABLE
Price: 6,50 € : 6,50 €
-+
14
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9010-040021-10000
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-02-26
Specification: INTERFERENCE IN PARKING CABLE
Price: 6,50 € : 6,50 €
-+
16
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 77,00 € : 77,00 €
17
P/N (SKU): 9010-060400-10000
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts: 9010-060400-20000
Price: 48,00 € : 48,00 €
18
P/N (SKU): 9010-060900
Part Name: ANTI-DUST CAP
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
19
P/N (SKU): 9010-0600A0
Part Name: REAR BEARING CARRIER ASSY
Effective: 2021-02-26
Price: 73,00 € : 73,00 €
-+
20
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 32,00 € : 32,00 €
22
P/N (SKU): 30800-05505
Part Name: CIRCLIPS FOR HOLES
Effective: 2021-02-26
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
23
P/N (SKU): 9010-060005
Part Name: MIDDLE SPACER
Effective: 2021-02-26
Price: 6,50 € : 6,50 €
-+
24
P/N (SKU): 9010-060004
Part Name: BUSHING
Effective: 2021-02-26
Price: 5,50 € : 5,50 €
-+
26
P/N (SKU): 30006-102050810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×50
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 401B-060301-00001
Part Name: REAR UPPER LH SWING ARM
Effective: 2021-02-26
Price: 88,00 € : 88,00 €
-+
28
P/N (SKU): 9010-060200-10000
Part Name: REAR SWING ARM (LOWER), RH
Effective: 2021-02-26
Alternative parts: 9010-060200-20000
Price: 48,00 € : 48,00 €
29
P/N (SKU): 401B-060101-00001
Part Name: null
Effective: 2021-02-26
Price: 74,00 € : 74,00 €
-+
