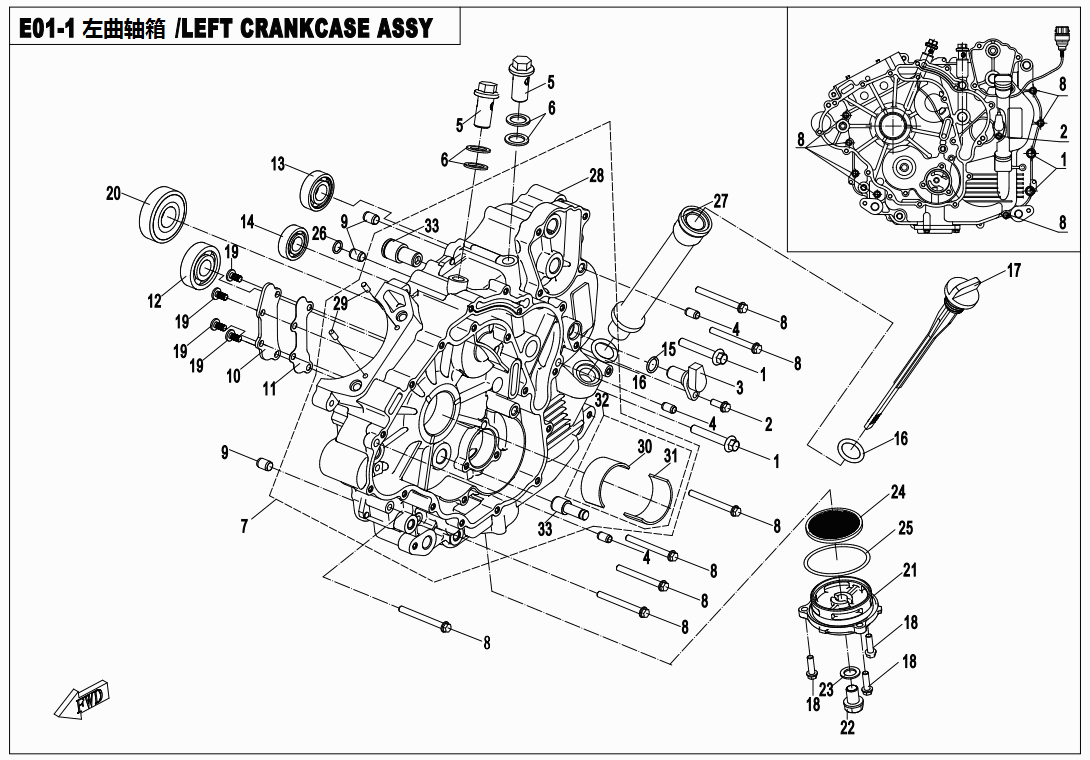

LEFT CRANKCASE ASSY - E01-1

LEFT CRANKCASE ASSY - E01-1

No.

01
P/N (SKU): 0040-012006-0010
Part Name: BOLT M8x50
Effective: 2021-02-26
Alternative parts:
Specification: M8X50
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0GR0-011020
Part Name: SPEEDOMETER SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 37,00 € : 37,00 €
-+
04
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts: 0DM0-022201-10000
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0180-011007-0010
Part Name: BOLT M14x1.5x32
Effective: 2021-02-26
Alternative parts:
Specification: M14x1.5x32
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0GR0-011100
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts: 0GR0-011100-00001
Price: 227,00 € : 227,00 €
08
P/N (SKU): 0010-011017-0010
Part Name: BOLT M6x60
Effective: 2021-02-26
Alternative parts:
Specification: M6x60
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0010-021005
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: 10x14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0GR0-011002
Part Name: OIL RAIL COVER PLATE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): 0GR0-011004
Part Name: PAPER WASHER, OIL RAIL
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30499-01700
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6303C3@NTN
Price: 15,00 € : 15,00 €
-+
13
P/N (SKU): 30400-01704
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 17
Price: 13,00 € : 13,00 €
-+
14
P/N (SKU): 30499-01500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6202
Price: 8,00 € : 8,00 €
-+
15
P/N (SKU): 01A0-013005
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 13x2
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 18x3.55
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0GRB-011001
Part Name: DIPSTICK, ENGINE OIL
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 0010-023010-0010
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0JWV-011107-3000
Specification: M6x20
Price: 1,50 € : 1,50 €
19
P/N (SKU): 30105-060012430
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30105-060012410
Specification: M6x12@CHROME-PLATED
Price: 1,50 € : 1,50 €
20
P/N (SKU): 30400-02201
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
21
P/N (SKU): 0GR0-011001
Part Name: PLATE, OIL STRAINER
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
22
P/N (SKU): 0110-013005-0030
Part Name: DRAIN BOLT, M12x1.5
Effective: 2021-02-26
Alternative parts: 0110-013005-0010
Specification: M12x1.5
Price: 2,50 € : 2,50 €
-+
23
P/N (SKU): 0010-021014
Part Name: WASHER 12
Effective: 2021-02-26
Alternative parts:
Specification: 12
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 0GR0-011010
Part Name: OIL STRAINER
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
25
P/N (SKU): 0800-014003
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 63x2.5
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30502-010000N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 10x1.8
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-011011-1000
Part Name: JOINT PIPE, , OIL DIPSTICK
Effective: 2021-02-26
Alternative parts:
Price: 18,00 € : 18,00 €
-+
28
P/N (SKU): 0GR0-011101-00011
Part Name: LH CRANKCASE BODY
Effective: 2021-02-26
Remarks: A:φ46.000～φ46.008/A,WITH RED BEARING SLEEVE/AVOID OIL LEAK
Alternative parts: 0800-011102-00011+0800-011103-00011+0GR0-011101-20011
Price: 250,00 € : 250,00 €
28
P/N (SKU): 0GR0-011101-00021
Part Name: LH CRANKCASE
Effective: 2021-02-26
Remarks: B:φ46.008～φ46.016/B,WITH BLUE BEARING SLEEVE/AVOID OIL LEAK
Alternative parts:
Price: 251,00 € : 251,00 €
-+
29
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE
Effective: 2021-02-26
Alternative parts:
Specification: P5x11.8
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 0800-011102-0002
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Remarks: BLUE
Alternative parts: 0800-011102-00021
Specification: BLUE@THICK
Price: 8,50 € : 8,50 €
30
P/N (SKU): 0800-011102-0001
Part Name: PLAIN BEARING 1
Effective: 2021-02-26
Remarks: RED
Alternative parts: 0800-011102-00011
Specification: RED@THIN
Price: 8,50 € : 8,50 €
31
P/N (SKU): 0800-011103-0001
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Remarks: RED
Alternative parts: 0800-011103-00011
Specification: RED@THIN
Price: 10,00 € : 10,00 €
-+
31
P/N (SKU): 0800-011103-0002
Part Name: PLAIN BEARING 2
Effective: 2021-02-26
Remarks: BLUE
Alternative parts: 0800-011103-00021
Specification: BLUE@THICK
Price: 7,50 € : 7,50 €
32
P/N (SKU): 0GR0-011103
Part Name: REVERSE INTERMEDIATE GEAR SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
33
P/N (SKU): 0GR0-011102
Part Name: DUAL GEAR SHAFT, OIL PUMP
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
