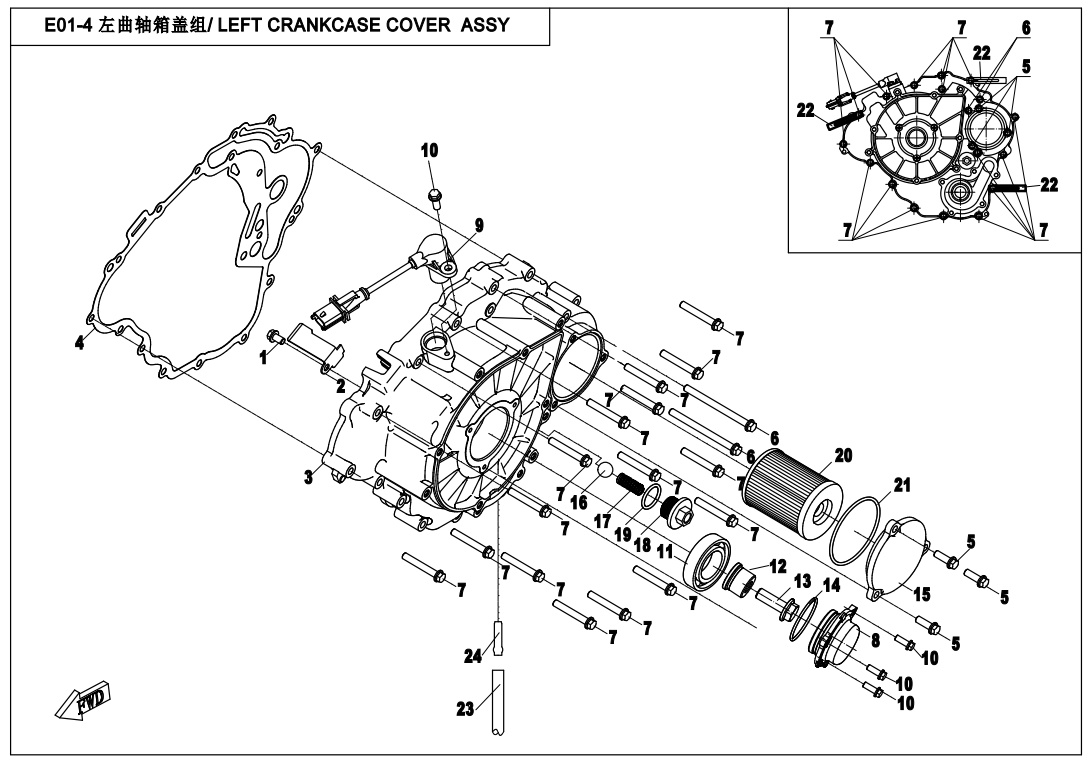

LEFT CRANKCASE COVER ASSY - E01-4

LEFT CRANKCASE COVER ASSY - E01-4

No.

01
P/N (SKU): 0010-080010
Part Name: BOLT M6x10
Effective: 2021-02-26
Alternative parts: 0010-080010-0010
Specification: M6x10
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0GR0-014005
Part Name: PLATE
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 0GR0-014001
Part Name: LH CRANKCASE COVER
Effective: 2021-02-26
Alternative parts:
Price: 70,00 € : 70,00 €
-+
04
P/N (SKU): 0GR0-014002
Part Name: PAPER GASKET, LH CRANKCASE COVER
Effective: 2021-02-26
Alternative parts: 0GR0-014002-10000
Price: 6,50 € : 6,50 €
05
P/N (SKU): 0010-023008
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0010-023008-00001
Specification: M6X18
Price: 1,50 € : 1,50 €
06
P/N (SKU): 0A70-011005
Part Name: BOLT M6x75
Effective: 2021-02-26
Alternative parts: 0A70-011005-00001
Specification: M6x75
Price: 1,50 € : 1,50 €
07
P/N (SKU): 0010-013009
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0010-013009-0010
Specification: M6x40
Price: 1,50 € : 1,50 €
08
P/N (SKU): 0GRA-014001
Part Name: PLUG
Effective: 2021-02-26
Alternative parts:
Specification: SUZUKI RED
Price: 7,00 € : 7,00 €
-+
09
P/N (SKU): 0800-014100
Part Name: RPM SENSOR
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 17,00 € : 17,00 €
-+
10
P/N (SKU): 0010-090005
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0010-090005-0010
Specification: M6x16
Price: 1,50 € : 1,50 €
11
P/N (SKU): 30400-02800
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
12
P/N (SKU): 0800-014008
Part Name: SLEEVE, TIGHTENING
Effective: 2021-02-26
Alternative parts:
Price: 8,00 € : 8,00 €
-+
13
P/N (SKU): 0800-014009
Part Name: BOLT M12x1.25x35
Effective: 2021-02-26
Alternative parts: 0800-014009-00001
Specification: M12x1.25x35
Price: 3,00 € : 3,00 €
14
P/N (SKU): 0GRA-014003
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 48x2.5
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 0800-014002
Part Name: FILTER CAP
Effective: 2021-02-26
Alternative parts: 0800-014002-00001
Price: 5,50 € : 5,50 €
16
P/N (SKU): 3120015
Part Name: STEEL BALL
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0700-012603-1000
Part Name: SPRING, RELIEF VALVE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
18
P/N (SKU): 0GR0-014003
Part Name: SCREW PLUG, RELIEF VALVE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
19
P/N (SKU): 0180-332004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 19x2.5
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0800-011300-0004
Part Name: OIL FILTER ELEMENT
Effective: 2021-02-26
Alternative parts:
Price: 9,50 € : 9,50 €
-+
21
P/N (SKU): 0800-014003
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 63x2.5
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-02-26
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0800-014013
Part Name: OVERFLOW HOSE
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 01A0-022102
Part Name: PIPE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
