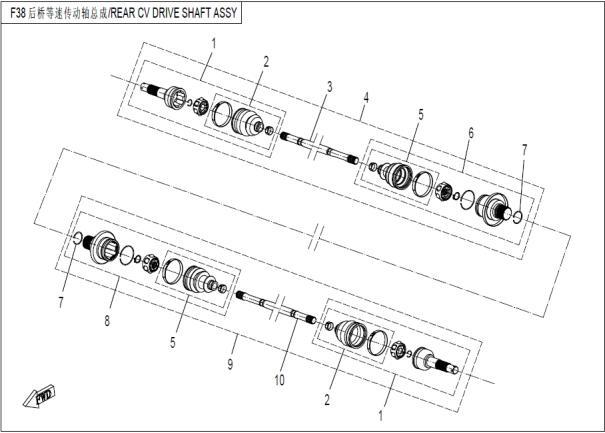

REAR CV DRIVE SHAFT ASSY - F38(2014 NEW)

REAR CV DRIVE SHAFT ASSY - F38(2014 NEW)

No.

01
P/N (SKU): 7000-280270
Part Name: REAR FIXED END JOINT
Effective: 2021-02-26
Remarks: SPS
Alternative parts:
Specification: SPS
Price: 112,00 € : 112,00 €
-+
01
P/N (SKU): 9060-280140-2000
Part Name: REAR FIXED END JOINT
Effective: 2021-02-26
Remarks: QC/钱潮
Alternative parts:
Price: 88,00 € : 88,00 €
-+
02
P/N (SKU): 7000-280260
Part Name: DUST BOOT, REAR FIXED END
Effective: 2021-02-26
Remarks: SPS
Alternative parts:
Specification: SPS
Price: 20,00 € : 20,00 €
-+
02
P/N (SKU): 9010-270150-2000
Part Name: DUST BOOT KIT, FIXING END
Effective: 2021-02-26
Remarks: QC
Alternative parts: 9010-270100-50000
Price: 22,00 € : 22,00 €
03
P/N (SKU): 9060-280206
Part Name: INTERMEDIATE SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 31,00 € : 31,00 €
-+
03
P/N (SKU): 9060-280211
Part Name: REAR SHAFT, RH
Effective: 2021-02-26
Remarks: SPS,is replaced by 9060-280211(SPS)or 9060-280211-000S0(QC)
Alternative parts: 9060-280211-000S0
Specification: SPS
Price: 49,00 € : 49,00 €
04
P/N (SKU): 9060-280200-20000
Part Name: REAR CV DRIVE SHAFT, RH
Effective: 2021-02-26
Alternative parts: 9060-280200-30000
Price: 211,00 € : 211,00 €
04
P/N (SKU): 9060-280200-1000
Part Name: REAR CV DRIVE SHAFT, RH
Effective: 2021-02-26
Alternative parts: 9060-280200-30000
Price: 211,00 € : 211,00 €
05
P/N (SKU): 7000-280250
Part Name: DUST BOOT, REAR MOTION END
Effective: 2021-02-26
Remarks: SPS
Alternative parts:
Specification: SPS
Price: 25,00 € : 25,00 €
-+
05
P/N (SKU): 9010-270160-2000
Part Name: DUST BOOT, MOTION END
Effective: 2021-02-26
Remarks: QC
Alternative parts:
Price: 20,00 € : 20,00 €
-+
06
P/N (SKU): 7000-280240
Part Name: BEARING KIT, REAR RH MOTION END
Effective: 2021-02-26
Remarks: SPS
Alternative parts:
Specification: SPS
Price: 112,00 € : 112,00 €
-+
06
P/N (SKU): 9010-280130-2000
Part Name: BEARING KIT, REAR LH MOTION END
Effective: 2021-02-26
Remarks: QC/钱潮
Alternative parts:
Price: 112,00 € : 112,00 €
-+
07
P/N (SKU): 9010-280102
Part Name: WIRE CIRCLIP
Effective: 2021-02-26
Remarks: is replaced by:9010-280102-00001
Alternative parts: 9010-280102-00001
Price: 3,50 € : 3,50 €
-+
07
P/N (SKU): 9010-280102-00001
Part Name: WIRE CIRCLIP
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7000-280140
Part Name: BEARING KIT, REAR LH MOTION END
Effective: 2021-02-26
Remarks: SPS
Alternative parts:
Specification: SPS
Price: 112,00 € : 112,00 €
-+
08
P/N (SKU): 9010-280230-2000
Part Name: BEARING KIT, REAR RH MOTION END
Effective: 2021-02-26
Remarks: QC/钱潮
Alternative parts:
Price: 112,00 € : 112,00 €
-+
09
P/N (SKU): 9060-280100-20000
Part Name: REAR CV DRIVE SHAFT, LH
Effective: 2021-02-26
Alternative parts: 9060-280100-30000
Price: 211,00 € : 211,00 €
09
P/N (SKU): 9060-280100-1000
Part Name: REAR CV DRIVE SHAFT, LH
Effective: 2021-02-26
Remarks: is replaced by 9060-280100
Alternative parts: 9060-280100-30000
Price: 211,00 € : 211,00 €
10
P/N (SKU): 9060-280106
Part Name: INTERMEDIATE SHAFT
Effective: 2021-02-26
Alternative parts: 9060-280100-30000
Price: 29,00 € : 29,00 €
10
P/N (SKU): 9060-280111
Part Name: REAR SHAFT, LH
Effective: 2021-02-26
Remarks: SPS,is replaced by 9060-280111(SPS) 0r 9060-280111-000S0( 钱潮)
Alternative parts: 9060-280111-000S0
Specification: SPS
Price: 39,00 € : 39,00 €
