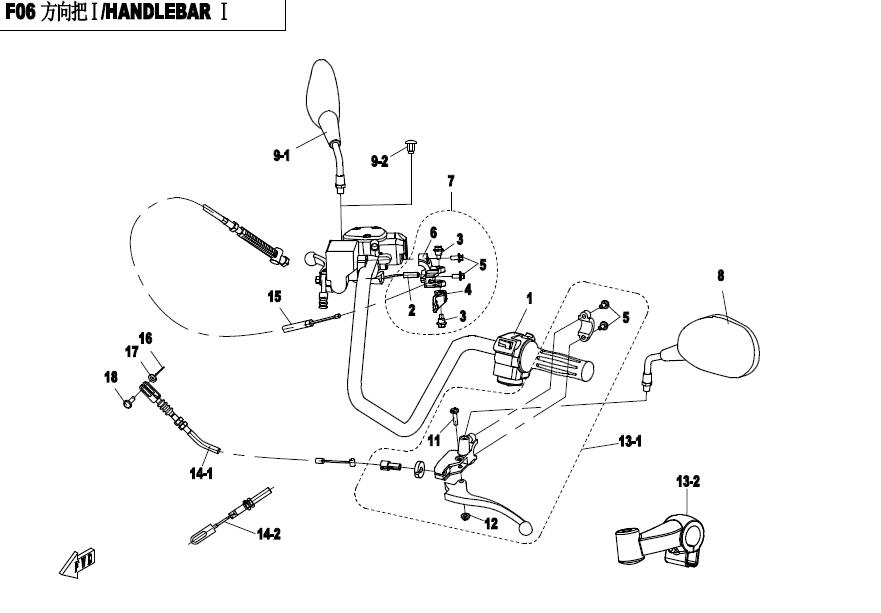

HANDLEBAR - F06

HANDLEBAR - F06

No.

01
P/N (SKU): 905B-160600-1000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Specification: US
Price: 34,00 € : 34,00 €
-+
01
P/N (SKU): 905B-160600-2000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 905B-160600-20001
Specification: HEDALIGHT NOT ALWAYS ON
Price: 40,00 € : 40,00 €
02
P/N (SKU): 9050-150500
Part Name: SWITCH, PARKING
Effective: 2021-02-26
Price: 5,50 € : 5,50 €
-+
03
P/N (SKU): 9050-080263
Part Name: PIN, PARKING BRAKE LEVER
Effective: 2021-02-26
Alternative parts: 9050-080263-10000
Price: 3,00 € : 3,00 €
04
P/N (SKU): 9050-080261
Part Name: PARKING BRAKE LEVER
Effective: 2021-02-26
Alternative parts: 9050-080261-10000
Price: 11,00 € : 11,00 €
-+
05
P/N (SKU): 30001-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: MILITARY GREEN
Price: 3,00 € : 3,00 €
06
P/N (SKU): 9050-080262
Part Name: SEAT, PARKING LEVER
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
07
P/N (SKU): 9050-080260
Part Name: PARKING BRAKE LEVER ASSY
Effective: 2021-02-26
Alternative parts: 9050-080260-10000
Price: 21,00 € : 21,00 €
08
P/N (SKU): 5190-200200
Part Name: REAR VIEW MIRROR, LH
Effective: 2021-02-26
Price: 15,00 € : 15,00 €
-+
9-1
P/N (SKU): 5190-200300
Part Name: RH REAR VIEW MIRROR
Effective: 2021-02-26
Price: 15,00 € : 15,00 €
-+
9-2
P/N (SKU): 9010-080004
Part Name: M8 RUBBER PLUG
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9010-080245
Part Name: PIN SHAFT
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30204-060840
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6
Price: 1,50 € : 1,50 €
-+
13-1
P/N (SKU): 9010-080250-1000
Part Name: LEVER, INTERLOCKING BRAKE
Effective: 2021-02-26
Alternative parts: 9DSV-083010-6H00
Price: 20,00 € : 20,00 €
13-2
P/N (SKU): 8050-080301-1000
Part Name: REAR VIEW MIRROR BRACKET
Effective: 2021-02-26
Price: 11,00 € : 11,00 €
-+
14-1
P/N (SKU): 9010-080230
Part Name: REAR BRAKE CABLE
Effective: 2021-02-26
Price: 14,00 € : 14,00 €
-+
14-2
P/N (SKU): 9010-080260
Part Name: INTERLOCKING LIMITING CABLE
Effective: 2021-02-26
Price: 4,50 € : 4,50 €
-+
15
P/N (SKU): 905A-080330-00001
Part Name: PARKING CABLE
Effective: 2021-02-26
Price: 16,00 € : 16,00 €
-+
16
P/N (SKU): 30903-0162040
Part Name: COTTER PIN 1.6x20
Effective: 2021-02-26
Alternative parts: 30903-0162010
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30306-060142
Part Name: WASHER
Effective: 2021-02-26
Specification: 6
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30904-0602010
Part Name: CLEVIS PIN WITH HEAD
Effective: 2021-02-26
Specification: 6x20@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
