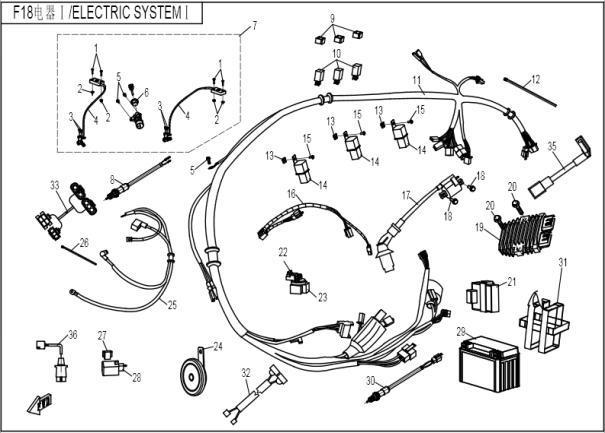

ELECTRIC PARTS I - F18

ELECTRIC PARTS I - F18

No.

01
P/N (SKU): 30107-060025410
Part Name: CROSS-RECESSED COUNTERSUNK HEAD SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M6x25
Price: 1,50 € : 1,50 €
02
P/N (SKU): 30202-060130
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: GB6177_M6
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30105-050012440
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30105-050012410
Specification: M5x12@ARMY GREEN
Price: 1,50 € : 1,50 €
04
P/N (SKU): 9030-010220
Part Name: LOCK PLATE, SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
05
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
06
P/N (SKU): 9030-010112
Part Name: IGNITION SWITCH LOCK CAP
Effective: 2021-02-26
Alternative parts: null
Price: 9,00 € : 9,00 €
07
P/N (SKU): 9030-010000
Part Name: LOCK ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 41,00 € : 41,00 €
08
P/N (SKU): 9010-150500
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
09
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
11
P/N (SKU): 9030-150100-4000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: WATERPROOF
Alternative parts: null
Price: 223,00 € : 223,00 €
11
P/N (SKU): 9030-150100-3000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 147,00 € : 147,00 €
12
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
13
P/N (SKU): 8030-040800
Part Name: NUT CLIP M6
Effective: 2021-02-26
Alternative parts: 8030-040800-00001
Specification: M6
Price: 1,50 € : 1,50 €
14
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
15
P/N (SKU): 30112-060016440
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts: 30112-060016410
Specification: M6x16@ARMY GREEN
Price: 2,00 € : 2,00 €
16
P/N (SKU): 9030-150300
Part Name: AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
17
P/N (SKU): 0180-152000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
18
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
19
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: 330W
Price: 104,00 € : 104,00 €
-+
20
P/N (SKU): 30006-060025840
Part Name: null
Effective: 2021-02-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
21
P/N (SKU): 0180-153000
Part Name: IGNITER
Effective: 2021-02-26
Remarks: EURO
Alternative parts: null
Price: 73,00 € : 73,00 €
-+
22
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Alternative parts: null
Specification: 22A
Price: 2,00 € : 2,00 €
23
P/N (SKU): 9010-150310-1000
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITHOUT CABLE
Alternative parts: 9010-150310-10001/9CR6-150310
Price: 25,00 € : 25,00 €
23
P/N (SKU): 9010-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITH CABLE (6mm)；is replaced by 9010-150310-1000+9010-150311-1000
Alternative parts: 9010-150310-10001+9010-150311-1000
Price: 25,00 € : 25,00 €
24
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
-+
25
P/N (SKU): 9030-150200
Part Name: STARTING TERMINAL CABLE ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 66,00 € : 66,00 €
26
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
27
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
28
P/N (SKU): 9010-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
29
P/N (SKU): 31021800
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 18A/DYNAVOLT,is replaced by 31021801
Alternative parts: null
Specification: 12V 18A DYNAVOLT
Price: 131,00 € : 131,00 €
29
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 30A,DYNOVOLT
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
30
P/N (SKU): 9030-150400
Part Name: PARKING SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 4,00 € : 4,00 €
31
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Remarks: 30A
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
32
P/N (SKU): 402A-150201
Part Name: DASHBOARD ADAPTOR HARNESS
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
33
P/N (SKU): 905A-150200
Part Name: ADAPTOR CABLE, REGULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
34
P/N (SKU): 9030-150300-1000
Part Name: AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
35
P/N (SKU): 9010-150311-1000
Part Name: POSITIVE CABLE, STARTER RELAY
Effective: 2021-02-26
Remarks: 30A
Alternative parts: null
Price: 16,00 € : 16,00 €
36
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
