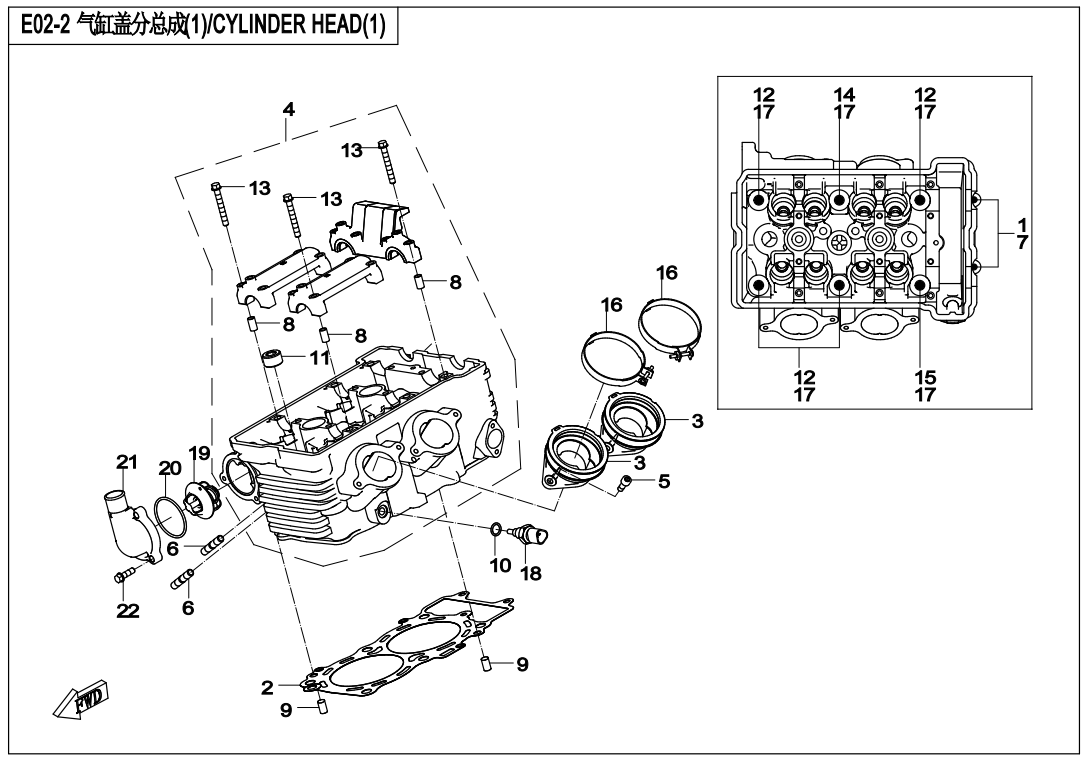

CYLINDER HEAD(1) - E02-2 | 2013, ENGINE, 283MT | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0060-030003-0030

Part Name: INNER HEX BOLT

Effective: 2021-02-26

Alternative parts: 0060-030003-00001

Specification: M6x30

Price: 1,50 € : 1,50 €

02

P/N (SKU): 0700-022100-0001

Part Name: CYLINDER HEAD GASKET ASSY

Effective: 2021-02-26

Alternative parts:

Price: 32,00 € : 32,00 €

03

P/N (SKU): 0700-022320-1000

Part Name: AIR INLET PIPE

Effective: 2021-02-26

Alternative parts: 0700-022320-20000

Price: 18,00 € : 18,00 €

04

P/N (SKU): 0700-022200-0B20

Part Name: CYLINDER HEAD ASSY

Effective: 2021-02-26

Alternative parts: 0700-022200-1B200/0700-022200-1B201

Specification: MATTE BLACK

Price: 282,00 € : 282,00 €

05

P/N (SKU): 30102-060016810

Part Name: SCREW

Effective: 2021-02-26

Alternative parts: 30102-060016830

Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

06

P/N (SKU): 0180-022003-0010

Part Name: STUD M8x42

Effective: 2021-02-26

Alternative parts: 0180-022003-00001

Specification: M8x42

Price: 1,50 € : 1,50 €

07

P/N (SKU): 0060-030004-0030

Part Name: WASHER

Effective: 2021-02-26

Alternative parts:

Specification: 6x10.4x1.6

Price: 1,50 € : 1,50 €

08

P/N (SKU): 0010-080008

Part Name: DOWEL PIN

Effective: 2021-02-26

Alternative parts: 0DM0-022201-10000

Specification: 8X14

Price: 1,50 € : 1,50 €

09

P/N (SKU): 0700-022018

Part Name: SOLID PIN 8x14

Effective: 2021-02-26

Alternative parts:

Specification: 8x14

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0700-022019

Part Name: WASHER

Effective: 2021-02-26

Alternative parts:

Specification: 12.5x20x1

Price: 2,00 € : 2,00 €

11

P/N (SKU): 0700-022236

Part Name: PLUG, PT1/2

Effective: 2021-02-26

Alternative parts:

Price: 2,00 € : 2,00 €

12

P/N (SKU): 0700-022013

Part Name: CYLINDER HEAD BOLT

Effective: 2021-02-26

Alternative parts: 0700-022013-00001

Specification: M10x158

Price: 3,50 € : 3,50 €

13

P/N (SKU): 0700-022204

Part Name: HEX FLANGE BOLT M6x45

Effective: 2021-02-26

Alternative parts:

Specification: M6X45

Price: 1,50 € : 1,50 €

14

P/N (SKU): 0700-022014

Part Name: CYLINDER HEAD BOLT

Effective: 2021-02-26

Alternative parts: 0700-022014-10000

Specification: M10x176

Price: 3,50 € : 3,50 €

15

P/N (SKU): 0700-022015

Part Name: CYLINDER HEAD BOLT

Effective: 2021-02-26

Alternative parts: 0700-022015-00001

Specification: M10x1.25x80

Price: 2,50 € : 2,50 €

16

P/N (SKU): 0700-022330

Part Name: CLAMP, AIR INLET PIPE

Effective: 2021-02-26

Alternative parts:

Price: 3,00 € : 3,00 €

17

P/N (SKU): 0700-022016

Part Name: WASHER

Effective: 2021-02-26

Alternative parts:

Specification: 10.5x19x2.3

Price: 1,50 € : 1,50 €

18

P/N (SKU): 0060-022810

Part Name: COOLANT TEMP. SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 20,00 € : 20,00 €

19

P/N (SKU): 0700-022500-0001

Part Name: THERMOSTAT

Effective: 2021-02-26

Alternative parts:

Price: 14,00 € : 14,00 €

20

P/N (SKU): 0700-022011

Part Name: O-RING

Effective: 2021-02-26

Alternative parts:

Specification: 44.5x2.5

Price: 3,00 € : 3,00 €

21

P/N (SKU): 0700-022009-0B201

Part Name: THERMOSTAT CAP

Effective: 2021-02-26

Alternative parts: 0700-022009-0B20

Price: 8,00 € : 8,00 €

22

P/N (SKU): 0010-023010-0010

Part Name: BOLT

Effective: 2021-02-26

Alternative parts: 0JWV-011107-3000

Specification: M6x20

Price: 1,50 € : 1,50 €
