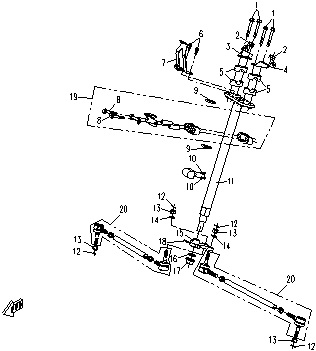

STEERING SYSTEM - F09

STEERING SYSTEM - F09

No.

01
P/N (SKU): 30006-080055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×55
Price: 1,80 € : 1,80 €
-+
02
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
03
P/N (SKU): 9010-030010
Part Name: DASHBOARD RH BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
04
P/N (SKU): 9010-030060
Part Name: DASHBOARD LH BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
05
P/N (SKU): 9010-030006
Part Name: HANDLEBAR ALLUMINUM COVER
Effective: 2021-02-26
Alternative parts: 9DSV-100001-6K00
Price: 8,20 € : 8,20 €
06
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,00 € : 1,00 €
07
P/N (SKU): 9010-030030
Part Name: DASHBOARD FRONT BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
08
P/N (SKU): 30003-080060810
Part Name:
Effective: 2021-02-26
Alternative parts: 30003-080075810
Specification: M8x60
Price: 1,00 € : 1,00 €
09
P/N (SKU): 9010-100404
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 30107-060012440
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6x12@ARMY GREEN
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 9010-037100
Part Name: STEERING STEM
Effective: 2021-02-26
Alternative parts:
Price: 67,40 € : 67,40 €
-+
12
P/N (SKU): 30903-0201640
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts: 30903-0201610
Price: 1,00 € : 1,00 €
13
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 1,70 € : 1,70 €
-+
14
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ10
Price: 1,00 € : 1,00 €
-+
15
P/N (SKU): 9010-100001-A000
Part Name: PITMAN ARM
Effective: 2021-02-26
Alternative parts:
Price: 24,64 € : 24,64 €
-+
16
P/N (SKU): 30306-140112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ14
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 30204-143810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M14×1.5
Price: 2,80 € : 2,80 €
-+
18
P/N (SKU): 30102-060020840
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts: 30102-060020810/30102-060020870
Specification: M6x20@ARMY GREEN
Price: 1,00 € : 1,00 €
19
P/N (SKU): 9010-1004A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 10,20 € : 10,20 €
-+
20
P/N (SKU): 9010-100530-1000
Part Name: STEERING ROD
Effective: 2021-02-26
Alternative parts: 9010-100530-20000
Price: 40,30 € : 40,30 €
