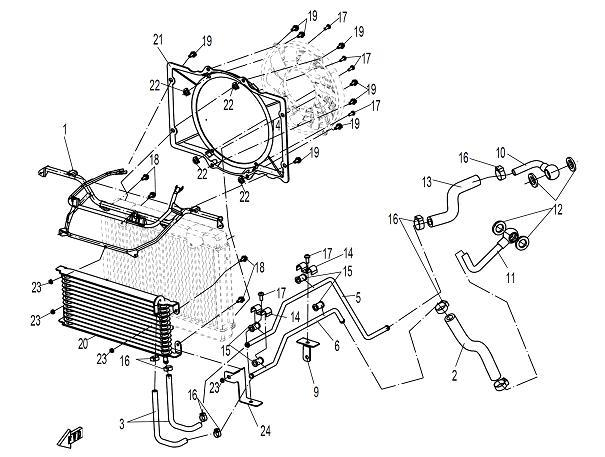

OIL COOLING SYSTEM - F34

OIL COOLING SYSTEM - F34

No.

01
P/N (SKU): 9050-030040-3000
Part Name: BRACKET, RADIATOR
Effective: 2021-02-26
Price: 42,00 € : 42,00 €
-+
02
P/N (SKU): 401B-180011
Part Name: REAR LH OIL PIPE
Effective: 2021-02-26
Remarks: is replaced by 9030-180005(350mm-220mm=130mm)
Alternative parts: 9030-180005
Price: 11,00 € : 11,00 €
03
P/N (SKU): 401B-180012
Part Name: FRONT OIL PIPE, LH
Effective: 2021-02-26
Price: 9,00 € : 9,00 €
-+
05
P/N (SKU): 401B-180101
Part Name: RH OIL PIPE
Effective: 2021-02-26
Remarks: is replaced by 401B-180101-00001
Alternative parts: 401B-180101-00002
Price: 27,00 € : 27,00 €
-+
06
P/N (SKU): 401B-180102
Part Name: OIL STEEL PIPE, LH
Effective: 2021-02-26
Remarks: is replaced by 401B-180102-00001
Alternative parts: 401B-180102-00001
Price: 27,00 € : 27,00 €
-+
09
P/N (SKU): 401B-180130
Part Name: null
Effective: 2021-02-26
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 9030-180600-1000
Part Name: OIL PIPE ASSY I, ENGINE
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
11
P/N (SKU): 9030-180700
Part Name: OIL PIPE ASSY 2, ENGINE
Effective: 2021-02-26
Price: 12,00 € : 12,00 €
-+
12
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Specification: 14
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9030-180020
Part Name: RH OIL PIPE
Effective: 2021-02-26
Remarks: Length:220mm ；is replaced by 9030-180005(350mm-130mm=220mm)
Alternative parts: 9030-180005
Price: 6,00 € : 6,00 €
14
P/N (SKU): 9030-180007
Part Name: CLIP, OIL PIPE
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 9030-180008
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9030-180061
Part Name: CLAMP
Effective: 2021-02-26
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 30112-060016440
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts: 30112-060016410
Specification: M6x16@ARMY GREEN
Price: 2,00 € : 2,00 €
18
P/N (SKU): 30006-060016840
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts: 30006-060016810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
19
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
20
P/N (SKU): 401B-181100-1000
Part Name: OIL RADIATOR
Effective: 2021-02-26
Price: 94,00 € : 94,00 €
-+
21
P/N (SKU): 401B-180103
Part Name: FAN DEFLECTOR
Effective: 2021-02-26
Price: 6,50 € : 6,50 €
-+
22
P/N (SKU): 8030-040800
Part Name: NUT CLIP M6
Effective: 2021-02-26
Alternative parts: 8030-040800-00001
Specification: M6
Price: 1,50 € : 1,50 €
23
P/N (SKU): 30202-060140
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: M6
Price: 1,50 € : 1,50 €
24
P/N (SKU): 401B-180140
Part Name: FRONT BRACKET, OIL HOSE
Effective: 2021-02-26
Price: 4,50 € : 4,50 €
-+
