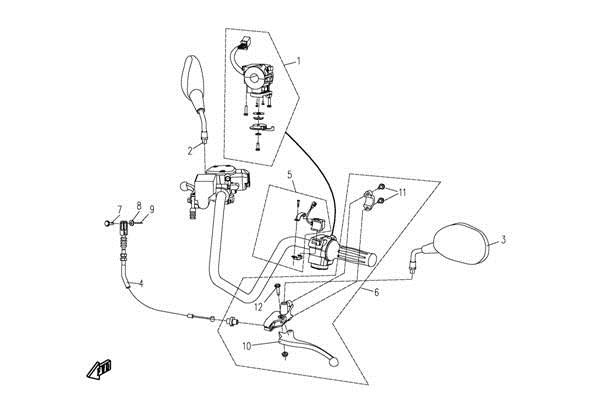

HANDLEBAR -01 - F03

HANDLEBAR -01 - F03

No.

01
P/N (SKU): 9010-160600
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Remarks: EURO(WITHOUT ENGINE STARTING AND STOP SWITCH)
Alternative parts:
Price: 29,00 € : 29,00 €
-+
01
P/N (SKU): 9010-160600-C000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Remarks: USA；is replaced by 9010-160600-A000
Alternative parts: 9010-160600-A000
Price: 34,00 € : 34,00 €
01
P/N (SKU): 9010-160600-A000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Remarks: EURO(WITH ENGINE STARTING AND STOP SWITCH)
Alternative parts:
Price: 40,00 € : 40,00 €
-+
02
P/N (SKU): 5190-200300
Part Name: RH REAR VIEW MIRROR
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
03
P/N (SKU): 5190-200200
Part Name: REAR VIEW MIRROR, LH
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
04
P/N (SKU): 9010-080230
Part Name: REAR BRAKE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
05
P/N (SKU): 9010-150400
Part Name: STARTER SWITCH
Effective: 2021-02-26
Remarks: NOT FOR CANADIAN MARKET
Alternative parts:
Price: 5,50 € : 5,50 €
-+
06
P/N (SKU): 9010-080250-1000
Part Name: LEVER, INTERLOCKING BRAKE
Effective: 2021-02-26
Alternative parts: 9DSV-083010-6H00
Price: 20,00 € : 20,00 €
07
P/N (SKU): 30904-0602010
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 6x20@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 30306-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30306-060142
Specification: φ6
Price: 1,50 € : 1,50 €
09
P/N (SKU): 30903-0162010
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: GB/T91_1.6×20
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9010-080251
Part Name: LEVER
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
11
P/N (SKU): 30006-060025840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9010-080255
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
