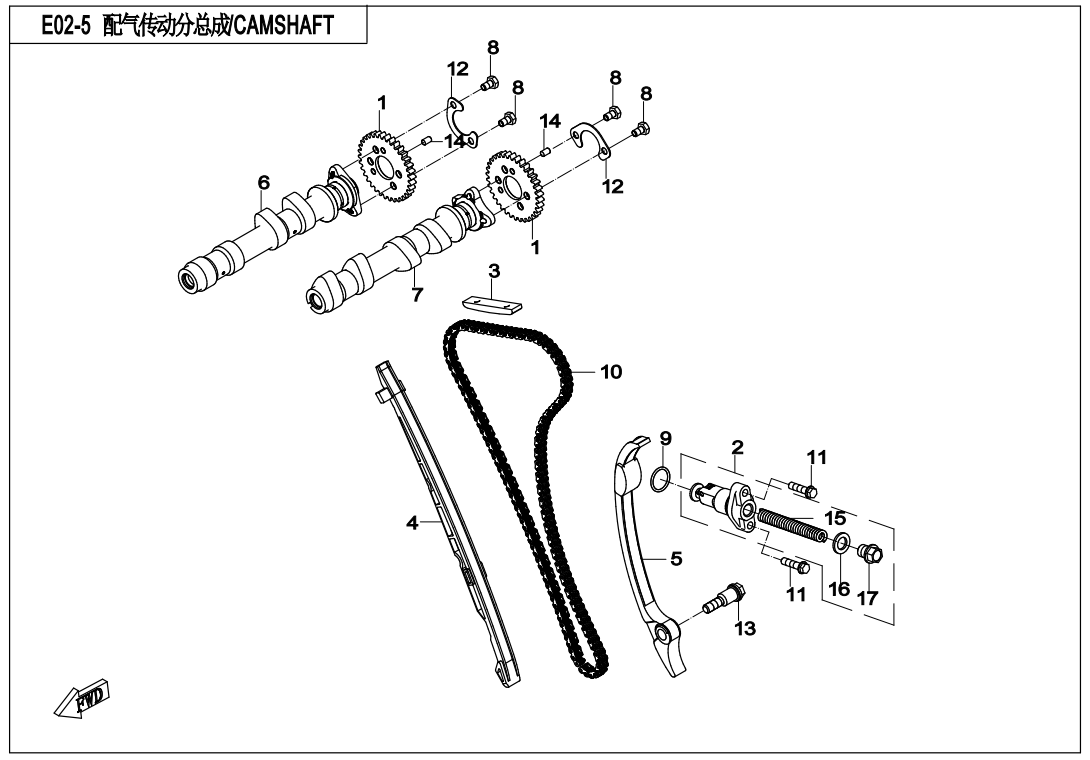

CAMSHAFT - E02-5

CAMSHAFT - E02-5

No.

01
P/N (SKU): 0700-024002-0001
Part Name: TIMING SPROCKET
Effective: 2021-02-26
Remarks: A=1→A=3
Alternative parts:
Specification: 1-3 GEAR
Price: 22,00 € : 22,00 €
-+
01
P/N (SKU): 0700-024002
Part Name: TIMING SPROCKET
Effective: 2021-02-26
Remarks: A=0→A=2
Alternative parts: 0700-024002-0001
Specification: HU ZHOU SHUANG SHI
Price: 22,00 € : 22,00 €
02
P/N (SKU): 0700-0241A0-0V50
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Remarks: CHAMPAGNE
Alternative parts:
Specification: CHAMPAGNE SILVER
Price: 30,00 € : 30,00 €
-+
02
P/N (SKU): 0700-0241A0-0B20
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Remarks: MATT BLACK
Alternative parts:
Specification: MATTE BLACK
Price: 26,00 € : 26,00 €
-+
03
P/N (SKU): 0700-022017
Part Name: CHAIN GUIDE BLOCK
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): 0700-024006
Part Name: CHAIN GUIDE
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
05
P/N (SKU): 0700-024300
Part Name: TENSION PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
06
P/N (SKU): 0700-024007
Part Name: CAMSHAFT, EXHAUST
Effective: 2021-02-26
Alternative parts: 0700-024500
Price: 83,00 € : 83,00 €
07
P/N (SKU): 0700-024004
Part Name: CAMSHAFT, AIR INLET
Effective: 2021-02-26
Alternative parts: 0700-024400
Price: 83,00 € : 83,00 €
08
P/N (SKU): 30004-060010150
Part Name: BOLT M6x10
Effective: 2021-02-26
Alternative parts:
Specification: M6x10
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0700-024001
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 19x2
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0700-024200-0001
Part Name: TIMING CHAIN
Effective: 2021-02-26
Remarks: A=1→A=3
Alternative parts:
Specification: 1-3 GEAR
Price: 41,00 € : 41,00 €
-+
10
P/N (SKU): 0700-024200
Part Name: TIMING CHAIN
Effective: 2021-02-26
Remarks: A=0→A=2
Alternative parts: 0700-024200-0001
Specification: 0-2 GEAR
Price: 28,00 € : 28,00 €
11
P/N (SKU): 0130-012005-0030
Part Name: BOLT M6x28
Effective: 2021-02-26
Alternative parts: 0010-070003-00001
Specification: M6x28
Price: 1,50 € : 1,50 €
12
P/N (SKU): 0700-024003
Part Name: RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0700-024008
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts: 0700-024008-00001
Price: 3,00 € : 3,00 €
14
P/N (SKU): 0180-024002
Part Name: DOWEL PIN, TIMING SPROCKET
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0700-024104
Part Name: SPRING, TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 0700-024106
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 11.5x17x2
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0700-024107
Part Name: SPRING SEAT BOLT
Effective: 2021-02-26
Alternative parts: 0700-024107-00001
Price: 3,00 € : 3,00 €
