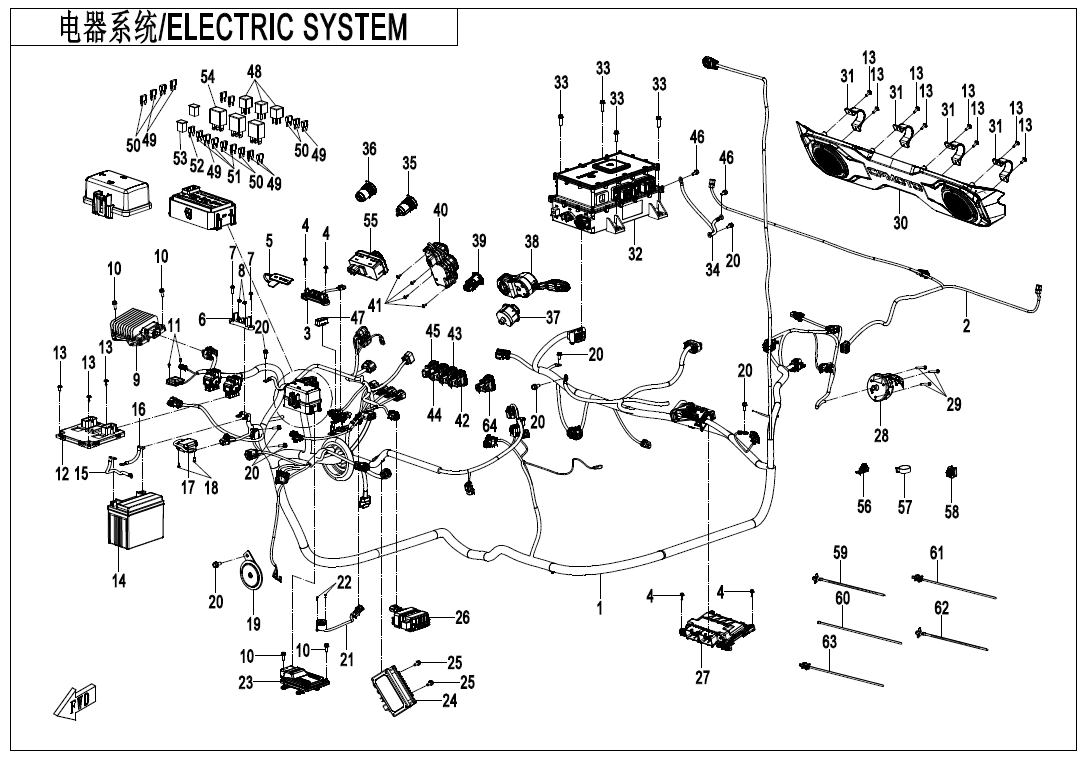

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 7DHV-150100-1002
Part Name: MAIN CABLE
Effective: 2025-04-16
Remarks: WITHOUT ABS
Alternative parts:
Price: 0,00 € : 0,00 €
-+
01
P/N (SKU): 7DHV-150100-1300
Part Name: MAIN CABLE
Effective: 2025-05-09
Remarks: WITH ABS
Alternative parts:
Price: 0,00 € : 0,00 €
-+
02
P/N (SKU): 7DHV-150184-1001
Part Name: TAIL LIGHT ADAPTER CABLE
Effective: 2025-04-16
Alternative parts:
Price: 0,00 € : 0,00 €
-+
03
P/N (SKU): 5BWV-156905-5000-M1
Part Name: EXTENSION POWER TERMINAL
Effective: 2024-12-26
Alternative parts:
Price: 36,60 € : 36,60 €
-+
04
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M6×25
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 5BWV-156906-5000-M1
Part Name: EXTENSION POWER TERMINAL CAP
Effective: 2024-12-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
06
P/N (SKU): 5SY0-151610-6000
Part Name: TERMINAL, CABLE
Effective: 2024-12-26
Alternative parts:
Specification: WITH KAIDI PLUG
Price: 10,56 € : 10,56 €
-+
07
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2024-12-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,00 € : 1,00 €
08
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2024-12-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 5HYV-155210-6001
Part Name: SOUND AMPLIFIER
Effective: 2024-12-26
Alternative parts:
Price: 131,30 € : 131,30 €
-+
10
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2024-12-26
Alternative parts:
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 7DHV-151900-1000
Part Name: BCM
Effective: 2024-12-26
Alternative parts:
Price: 226,10 € : 226,10 €
-+
13
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2024-12-26
Alternative parts:
Specification: M6x20
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 31021200
Part Name: BATTERY
Effective: 2024-12-26
Alternative parts:
Specification: 12V12AH
Price: 95,50 € : 95,50 €
-+
15
P/N (SKU): 7DHV-150420-1001
Part Name: BATTERY NEGATIVE CABLE
Effective: 2024-12-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
16
P/N (SKU): 7DHV-150310-1002
Part Name: BATTERY POSITIVE CABLE
Effective: 2025-04-16
Alternative parts:
Price: 0,00 € : 0,00 €
-+
17
P/N (SKU): EAEV-150900-1000
Part Name: HORN
Effective: 2024-12-26
Alternative parts: EAEV-150900-1001
Price: 14,50 € : 14,50 €
18
P/N (SKU): 30110-420130070
Part Name: SELF-TAPPING SCREW
Effective: 2024-12-26
Alternative parts:
Specification: ST4.2x13@BLACK ZINC-PLATED
Price: 1,00 € : 1,00 €
-+
19
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2024-12-26
Alternative parts:
Price: 9,90 € : 9,90 €
-+
20
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-12-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
21
P/N (SKU): 9DQV-150300-3000-10
Part Name: ALARM
Effective: 2024-12-26
Alternative parts: 9AWV-156800-2800-10
Price: 25,04 € : 25,04 €
-+
22
P/N (SKU): 30110-290095010
Part Name: SELF-TAPPING SCREW
Effective: 2024-12-26
Alternative parts:
Specification: ST2.9x9.5@TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
23
P/N (SKU): 7DHV-155100-1000
Part Name: SWITCH ASSY
Effective: 2024-12-26
Alternative parts:
Price: 144,60 € : 144,60 €
-+
24
P/N (SKU): 7DHV-150810-1000
Part Name: EPS CONTROLLER
Effective: 2024-12-26
Alternative parts:
Price: 168,00 € : 168,00 €
-+
25
P/N (SKU): 30006-060012870
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M6x12@BLACK ZINC
Price: 1,00 € : 1,00 €
-+
26
P/N (SKU): SN1V-691100-1100-14
Part Name: T-BOX
Effective: 2024-12-26
Remarks: China
Alternative parts:
Price: 227,60 € : 227,60 €
-+
26
P/N (SKU): SN1V-691100-1200-14
Part Name: T-BOX
Effective: 2024-12-26
Remarks: Europe/Australia/Middle East/Africa/Southeast Asia/west Asia
Alternative parts:
Price: 227,60 € : 227,60 €
-+
26
P/N (SKU): SN1V-691100-1400-14
Part Name: T-BOX
Effective: 2024-12-26
Remarks: Sorth America(except Brazil)
Alternative parts:
Price: 227,60 € : 227,60 €
-+
26
P/N (SKU): SN1V-691100-1500-14
Part Name: T-BOX
Effective: 2024-12-26
Remarks: Turkey
Alternative parts:
Price: 227,60 € : 227,60 €
-+
26
P/N (SKU): SN1V-691100-1600-14
Part Name: T-BOX
Effective: 2024-12-26
Remarks: Brazil
Alternative parts:
Price: 227,60 € : 227,60 €
-+
27
P/N (SKU): 7DHV-440100-1100
Part Name: VEHICLE CONTROLLER ASSY
Effective: 2024-12-26
Remarks: FOR INTERNATIONAL
Alternative parts:
Price: 200,80 € : 200,80 €
-+
27
P/N (SKU): 7DHV-440100-1000
Part Name: VEHICLE CONTROLLER
Effective: 2025-05-07
Remarks: EU167 T1A
Alternative parts:
Price: 0,00 € : 0,00 €
-+
27
P/N (SKU): 7DHV-440100-1000-10
Part Name: VEHICLE CONTROLLER
Effective: 2025-05-07
Remarks: EU167 T1B
Alternative parts:
Price: 0,00 € : 0,00 €
-+
27
P/N (SKU): 7DHV-440100-1300
Part Name: VEHICLE CONTROLLER
Effective: 2025-05-09
Remarks: EU167 ABS
Alternative parts:
Specification: VCU ASSY
Price: 0,00 € : 0,00 €
-+
28
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2024-12-26
Alternative parts:
Price: 36,30 € : 36,30 €
-+
29
P/N (SKU): 30105-050035410
Part Name: SCREW
Effective: 2024-12-26
Alternative parts:
Specification: M5x35@TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
30
P/N (SKU): 5HYV-150410-6001
Part Name: SPEAKER ASSY
Effective: 2024-12-26
Alternative parts:
Price: 78,90 € : 78,90 €
-+
31
P/N (SKU): 5HYV-150413-6000
Part Name: SPEAKER CLAMP
Effective: 2024-12-26
Alternative parts:
Price: 2,80 € : 2,80 €
-+
32
P/N (SKU): 7DHV-440300-1000
Part Name: 3.3KW POWER 3 IN 1 ASSY
Effective: 2024-12-26
Alternative parts:
Specification: 350V
Price: 200,80 € : 200,80 €
-+
33
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M8×25
Price: 1,00 € : 1,00 €
-+
34
P/N (SKU): 7DHV-150330-1001
Part Name: DC NEGATIVE CABLE
Effective: 2024-12-26
Alternative parts:
Price: 16,70 € : 16,70 €
-+
35
P/N (SKU): 9AWV-151200-8000
Part Name: USB OUTPUT SEAT ASSY
Effective: 2024-12-26
Alternative parts:
Price: 37,00 € : 37,00 €
-+
36
P/N (SKU): 6WWV-150500-5000-10
Part Name: POWER OUTLET SOCKET
Effective: 2024-12-26
Alternative parts: 6WWV-151100-4000
Price: 23,92 € : 23,92 €
-+
37
P/N (SKU): 5HYV-169080-6000
Part Name: 2WD/4WD SWITCH
Effective: 2024-12-26
Alternative parts:
Price: 29,20 € : 29,20 €
-+
38
P/N (SKU): 5GYV-169480-1200
Part Name: SWITCHGROUP
Effective: 2024-12-26
Alternative parts:
Price: 37,36 € : 37,36 €
-+
39
P/N (SKU): 5HYV-169150-6000
Part Name: ONE-CLICK START SWITCH
Effective: 2024-12-26
Alternative parts:
Price: 37,20 € : 37,20 €
-+
40
P/N (SKU): 7DHV-169390-1000
Part Name: E-SHIFTER
Effective: 2024-12-26
Alternative parts:
Price: 120,60 € : 120,60 €
-+
41
P/N (SKU): 5BWV-040016-5000
Part Name: INNER HEX SLEF-TAPPING SCREW ST4.8x16
Effective: 2024-12-26
Alternative parts: 5BWV-040015-5000
Specification: ST4.8x16
Price: 1,00 € : 1,00 €
42
P/N (SKU): 5HYV-169070-6000
Part Name: HAZARD SWITCH
Effective: 2024-12-26
Alternative parts:
Price: 14,09 € : 14,09 €
-+
43
P/N (SKU): 5HYV-169030-6000
Part Name: DIMMER SWITCH
Effective: 2024-12-26
Alternative parts:
Price: 14,09 € : 14,09 €
-+
44
P/N (SKU): 5HYV-169360-6001
Part Name: WINCH SWITCH ASSY
Effective: 2024-12-26
Alternative parts:
Price: 24,28 € : 24,28 €
-+
45
P/N (SKU): 5HYV-169570-6000
Part Name: VR SWITCH
Effective: 2024-12-26
Alternative parts:
Price: 14,70 € : 14,70 €
-+
46
P/N (SKU): 30006-080012810
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M8×12
Price: 1,00 € : 1,00 €
-+
47
P/N (SKU): CFCV-11H016-2000-M1
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2024-12-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
48
P/N (SKU): CFCV-11H804-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2024-12-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
49
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2024-12-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
50
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2024-12-26
Alternative parts:
Specification: 15A
Price: 1,00 € : 1,00 €
-+
51
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-12-26
Alternative parts:
Specification: 10A
Price: 2,20 € : 2,20 €
-+
52
P/N (SKU): 806A-151306
Part Name: 20A FUSE
Effective: 2024-12-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
53
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2024-12-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
54
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2024-12-26
Alternative parts:
Price: 6,70 € : 6,70 €
-+
55
P/N (SKU): 7DHV-169500-1000
Part Name: FUNCTION SWITCH
Effective: 2024-12-26
Alternative parts:
Price: 64,80 € : 64,80 €
-+
56
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2024-12-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
57
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2024-12-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
58
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-12-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
59
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2024-12-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
60
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-12-26
Alternative parts:
Specification: 5x250
Price: 1,30 € : 1,30 €
-+
61
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2024-12-26
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,00 € : 1,00 €
-+
62
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2024-12-26
Alternative parts:
Price: 1,80 € : 1,80 €
-+
63
P/N (SKU): 5ASV-150009-6000-M1
Part Name: TIE BAND
Effective: 2024-12-26
Alternative parts:
Specification: ZDG100x4.5
Price: 1,00 € : 1,00 €
-+
64
P/N (SKU): 5HYV-169470-7200
Part Name: ABS SWITCH
Effective: 2025-05-09
Alternative parts:
Price: 14,40 € : 14,40 €
-+
